Convenient floorboard newly released! Sturdy, lightweight and low-priced floorboard exclusively for the agricultural sector.
Features
Curing board dedicated to the agricultural sector
Sturdy, lightweight and low-priced
Domestic production with secure (Acquisition of ISO9001)
Uses "Wood Plastic", a composite material which plastic (polyethylene) is reinforced with wood fibers
Specifications
Dimensions (mm)
Weight
Surface
Color
Width
Length
Thickness
4 shaku x 8 shaku-sized
1,219
2,438
13 (8+5)
27㎏ (±5%)
Non-slip surface Surface: 5 mm in hight Back: Flat
Brown
3 shaku x 6 shaku-sized
910
1,820
13 (8+5)
15kg (±5%)
4 shaku x 8 shaku-sized (Thick type)
1,219
2,438
15 (13+2)
39kg (±5%)
Non-slip surface Surface: 2 mm in hight Back: Flat
3 shaku x 6 shaku-sized (Thick type)
910
1,820
15(13+2)
21kg (±5%)
Design drawing of Diban 4 shaku x 8 shaku-sized (Thin-type)

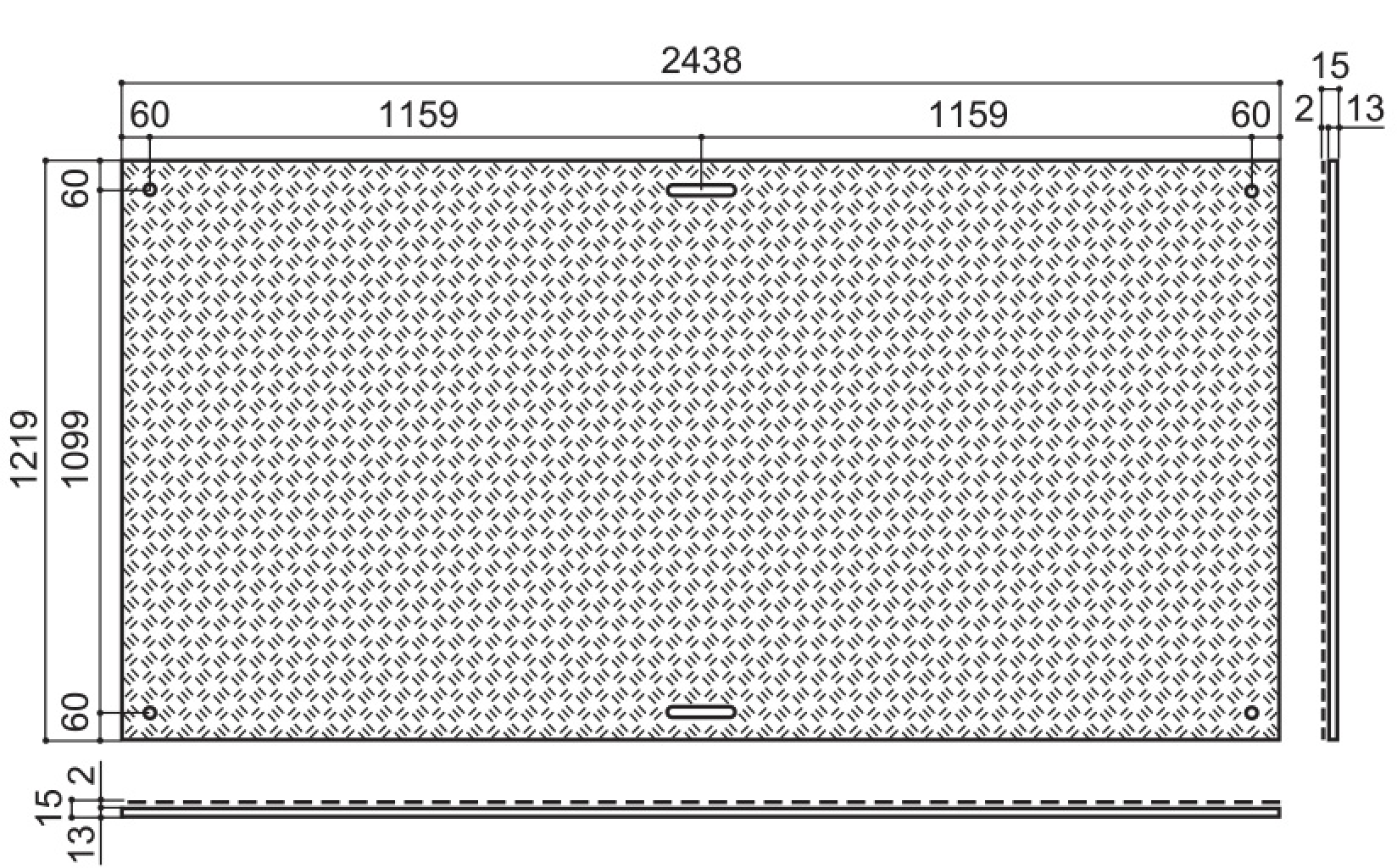

Design drawing of Diban 4 shaku x 8 shaku-sized (Thick-type)
Example of use
Easy access to farmland!
For maintenance around PVC greenhouses and livestock barns!
For ridges and passages!
For tourist farm visitors wearing leather shoes and high-heeled shoes.
Forklifts can be driven on Diban!
Product introduction video
[In a wheel slipping place] In case a car enters a rice field or a farm, Diban makes the car move smoothly even in a slipping place.
[Driving in the rice field] It is possible to drive smoothly in the rice field, which is usually muddy and difficult to do so.
[For using handcarts in the field] Handcarts can also be used smoothly.
[Actual scene of use]
Precautions for use
Be sure to wear working gloves when constructing, removing or moving, etc. Diban by hands.
As Diban is lightweight, deviations may occur due to the vehicle running motion.
Diban may be blown off by a gust of typhoon, etc.. If stormy weather is expected, fix or remove it.
As Diban is a resin product, it may warp or shrink due to a sudden change in temperature depending on the season.
Running motion of iron crawler vehicles on Diban can lead to damage and premature attrition.
There is a risk of breakage under conditions where sharp objects such as crushed stones and concrete debris are stuck into the floor.
Lifting the fixed floorboard or moving the floorboard with placing the objects on may cause damage. Release the floorboard or remove the objects off before carrying.
Prohibited matter
To use in conditions where there are some spaces under the floorboard such as gutters or steps.
To use as a floorboard for crane outriggers.
To use on soft ground or ground that may collapse.
To use fire such as bonfire or welding sparks on the product.
